Product Information

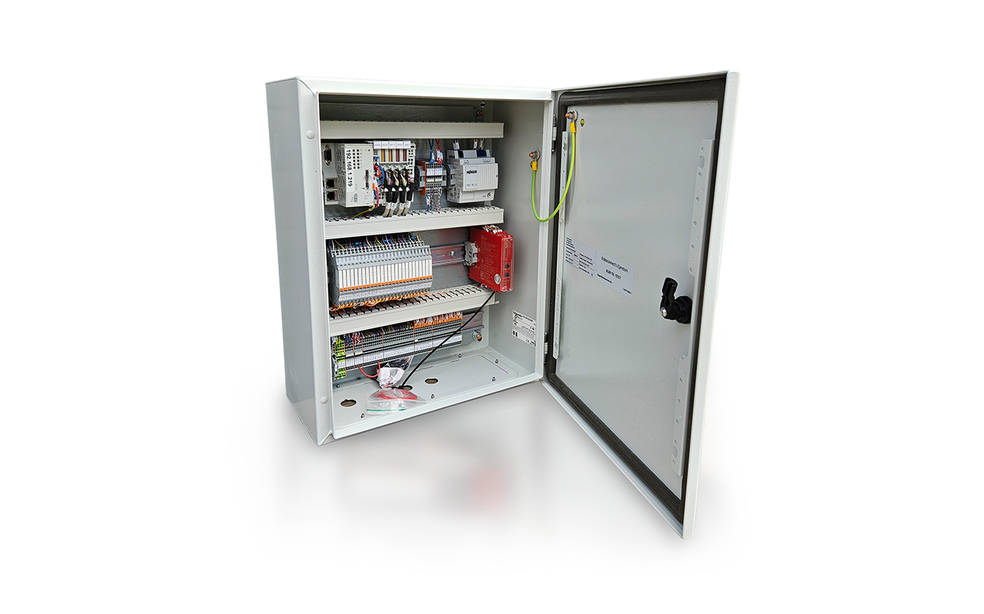

The Rocon Elevator Interface Panel allows AMRs to safely and efficiently use elevators. By using standard signals found in most elevator controllers, the interface can typically be integrated with minimal changes to the elevator controller. It also supports OPC UA, enabling secure and flexible communication with modern automation systems.
- Your employees save valuable time and can be redeployed for higher-value tasks when your mobile AMR transport items across floors
- The Elevator Interface Panel handles all communication with the elevator controller and the AMR
- The Elevator Interface Panel uses standard signals and can therefore be installed in most elevator controllers
Technical Information
Compatible with: MiR100, MiR200, MiR500, MiR1000
Input Voltage Range: VAC 110-240
Input Voltage Frequency: HZ 50-60
Input Current: A 2
Lift Signal Voltage Range: VDC/VAC 24-240
Enclosure: Schneider
Assembly Environment Max: 53°C
Enclosure Dimension mm: 500x400x210
Enclosure Weight: 13 kg
Features
Fast Installation
Typically completed in 4–8 hours with minimal elevator downtime.
Easy Integration
Uses standard elevator signals, requiring minimal changes to existing controllers.
No Maintenance Required
Once installed, the system runs reliably without ongoing service.
No Cloud & No Recurring Costs
Fully self-contained system with no cloud connection required and no ongoing expenses.
OPC UA Support
Enables secure and standardized communication with modern automation systems.
Safe & Autonomous Elevator Use
Ensures the elevator is empty before AMR entry and manages all signals for safe transport.
Flexible Mounting
Wall-mounted near the elevator controller with simple power and network connections.
Technician-Supported Setup
Installed by certified elevator technicians with support from RoboConnect specialists.
Purpose-Built for AMRs
Designed specifically to interface between Autonomous Mobile Robots and elevator systems.
)
)
Transport items autonomously in industry and healthcare – even between floors via the Rocon Elevator Interface
Company Description
The people behind RoboConnect has 30 years’ experience working in the elevator industry with programming and development of controllers. The company was founded in 2017 to work with MiR implementations. RoboConnect manufactures and sells communication interfaces between elevators and MiR products. RoboConnect delivers solutions worldwide, with key markets including China, the USA, and Central Europe.
